WE ARE PLEASED TO INTRODUCE OURSELVERS AS MANUFACTURER OF MAGNETIC WOUND COMPONENT AS PER CUSTOMER REQUIREMENT.

  • 3 Ph./1 Ph. Control Transformers
  • Step Down Transformer
  • Transformer For Weighting Scale
  • Isolation Transformer
  • 3 Phase Oil Cooled
  • Dry type L.T. Transformers
  • Auto Transformers
  • Buck Boost Transformers
  • Rectifiers Transformers
  • K-rated Transformers
  • Oil Cooled Transformers
  • Distribution Transformers
  • 3 Phase/ 1 Phase Chokes
  • Servo Control Voltage Stabilizer
  • Single Phase Stabilizer
  • Three Phase Stabilizer
  • Battery Chargers

Transformer

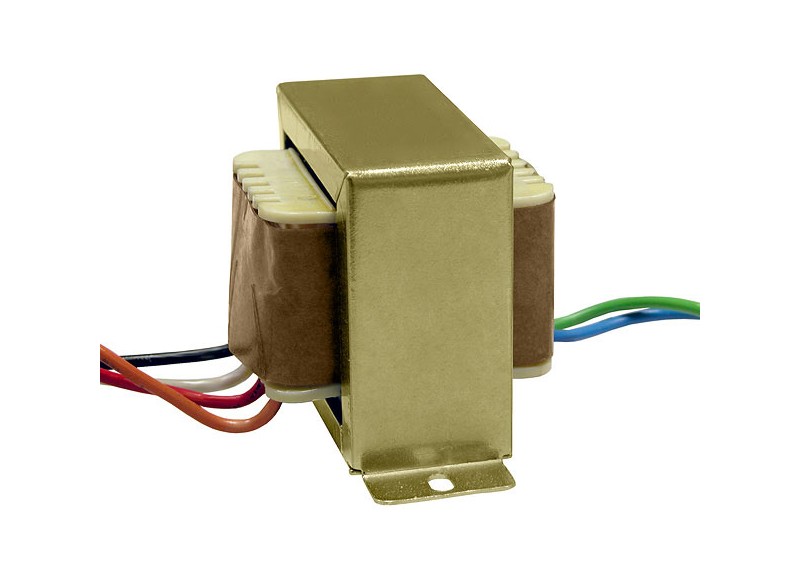

Step Down Transformer
Single Down Transformer

  • Single Phase / Three Phase & All types of customized transformer any capacity

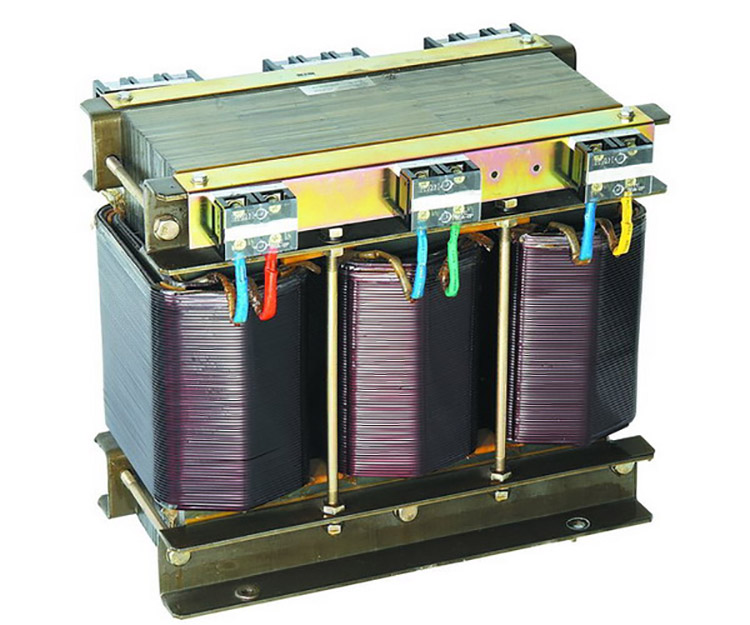

Single Down Transformer

  • Effective isolation from the noisy power lines
  • Extremely low interwinding capacitance
  • Electrostatic shielding and protection
  • High galvanic Isolation
  • Suppression of common mode and transverse mode noise

Single Down Transformer

  • Visual Indication against extreme high or low input voltages
  • Ruggedised construction, castor-mounted for easy movement
  • No waveform distortion, suitable for operation on DG set
  • Auto / Manual facility of opration from front panel controls



Single Down Transformer

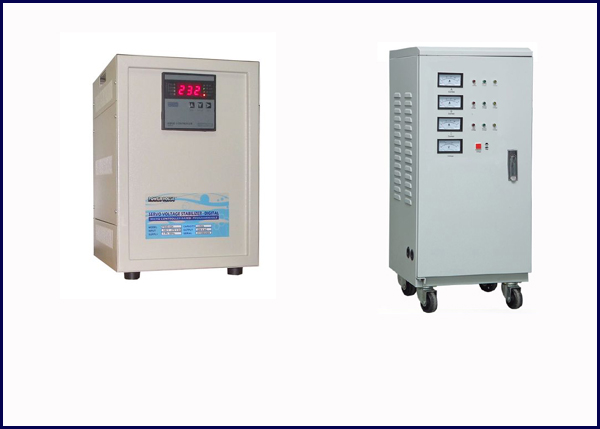

Stabilizer

WE ARE PLEASED TO INTRODUCE OUR SELVES AS MANUFACTURER OF SERVO CONTROLLED VOLTAGE STABILIZER AS PER CUSTOMER REQUIREMENT.

SPECIFICATIONS

  • Input Voltage (3 Ph) - 300 - 460 V AC 3 ph 50 Hz Phase to Phase
  • Input Voltage (1 Ph) - 170 - 270 V AC 1 ph 50 Hz
  • Output Voltage (3 Ph) - 415 V AC
  • Output Voltage (1 Ph) - 230 V AC
  • System - Unbalanced 4 wire
  • Connections - Star - Star
  • Operating Frequency - 50 Hz +- 5%
  • Output Voltage Adjustable - 10 Volts
  • Output Voltage Regulation - +-1%
  • Overload Capacity - 120%
  • Correction Rate - 25V / Sec-1
  • Waveform Distortion - Nil
  • Insulation - Class "B"
  • Normal Operation Temperature - 0 C to 45 C
  • Type of Cooling : Natural Air Cooled / Oil Cooled
  • Mode of System : Automatic / Manual
  • System Construction : As Per IS:9815-1994

APPLICATIONS

  • Process Control Equipments
  • CNC Machine
  • Medical Equipments
  • Telecommunication Equipments
  • Textile Machineries
  • Electronic Equipments
  • Computer Class
  • Xerox Machine

    • METERS

  • Voltmeter with selector switch to read Input / Output voltages
  • Ammeter with Selector Switch

    • PROTECTIONS

  • High Voltage Protection
  • Low Voltage Protection
  • Single Phasing Preventer for 3 Ph.
  • Overload protection with MCB/MCCB

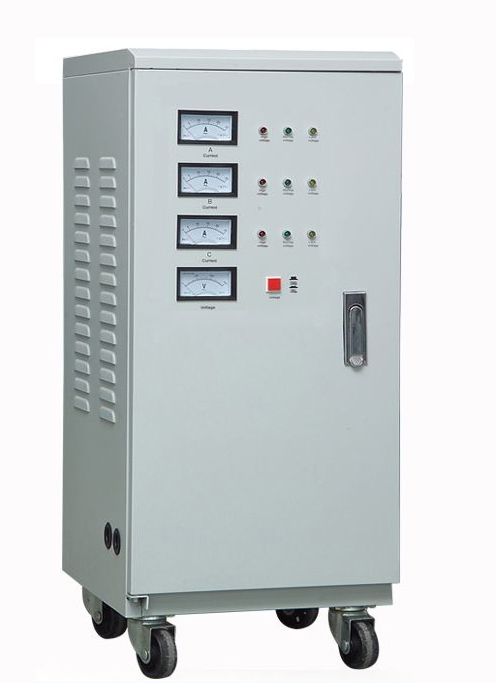

    Single Down Transformer

    CONTROLS

  • Auto / Manual select switch
  • Input / Output select switch
  • Volts Adjust to set required output voltage in auto mode
  • Increase / Decrease switch to control the output voltage in manual mode
  • Output Voltage - Set pot.
  • Output - ON
  • Reset

    • INDICATIONS

  • Input - On
  • Output - On
  • Input - Low
  • Input - High
  • Output - Cutoff

    • FITTING AND ACCESSORIES

  • 4 Nos. of Plain Rollers
  • 2 Nos. of Lifting Hooks
  • Earthing Terminal
  • Rating Plate

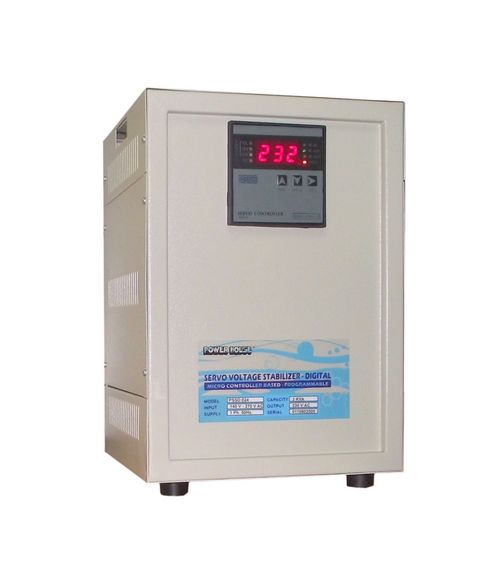

Single Phase Stabilizer
Single Down Transformer
Single Down Transformer

  • Over load and short circuit protection
  • High/Low voltage cut-off, SPP (auto preventor)
  • Digital voltmeter/ampere/frequency meter
  • Other input/output voltage wide range on request
  • Surge filter for noisy supply lines (EMI/RFI filter)
  • Power on time-delay
  • Micro Preocessor Based

Single Down Transformer

Applications

Computer, Scientific (Lab.) Equipments, Zerox Machines, CNC Machines, A.C. Plants/Lifts Electro-Medical Equipments, Printing Presses, Communication Equipments, Office Equipments, Plastic Molding Machinery, Wire Cut Machine, Industrial Machines etc., Water Jet Machine

Specification Three Phase Single Phase
Input Voltage 360 V to 460 V AC, 50 Hz 170 V to 2700 V AC, 50 Hz
Optional Range (I/P) 340-480, 300-480, 350-500 V AC 150-280, 170-300 V AC
Output Voltage 380V/400V/415 V AC ± 2%, 50 Hz 220 ± 1%, 50 Hz
Efficiency → 95% → 95%
Waveform Distortion NIL NIL
Capacity 3 KVA to 300 KVA 1 KVA to 50 KVA
Configuration Balance / Unbalance -
Cooling Natural Air / Oil Cool Natural Air Cool
Type Indoor Indoor
Temp Rise (Max) 30° C Above ambient 50° C Above ambient
Duty Cycle 100% Continuous 100% Continuous

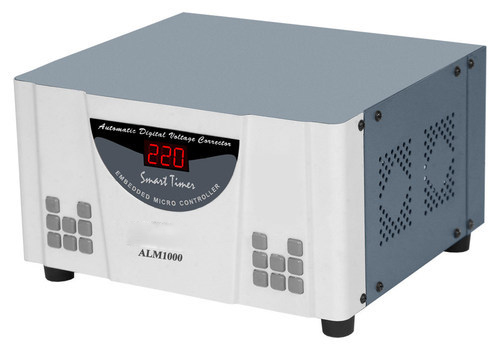

Digital Inverter

  • No Sound, No Pollution
  • No maintenance Required
  • Overload protection
  • Battery reverse, Overcharge, Deep discharge protection
  • Maintenance cost is very less

Single Down Transformer

Applications

Tube, Lamp, Fan, TV, Air Cooler, Milkotester, Refrigerator, Fax, PCO, Computer, Weighting Machines, Showroom, Factory, Garden, Hospital, Marriage occasions, Residence

Model & Battery Selection Chart (For 3 to 4 Hours Back up)
Model
VA		 D.C.
Voltage		 Χ Battery
Nos.		 Battery
AH
350 12 Χ 1 120
550 12 Χ 1 150
725 12 Χ 1 180
850 24 Χ 2 120
1250 24 Χ 2 150
1750 48 Χ 4 120
2250 48 Χ 4 120
3000 72 Χ 6 150
5000 144 Χ 12 120
